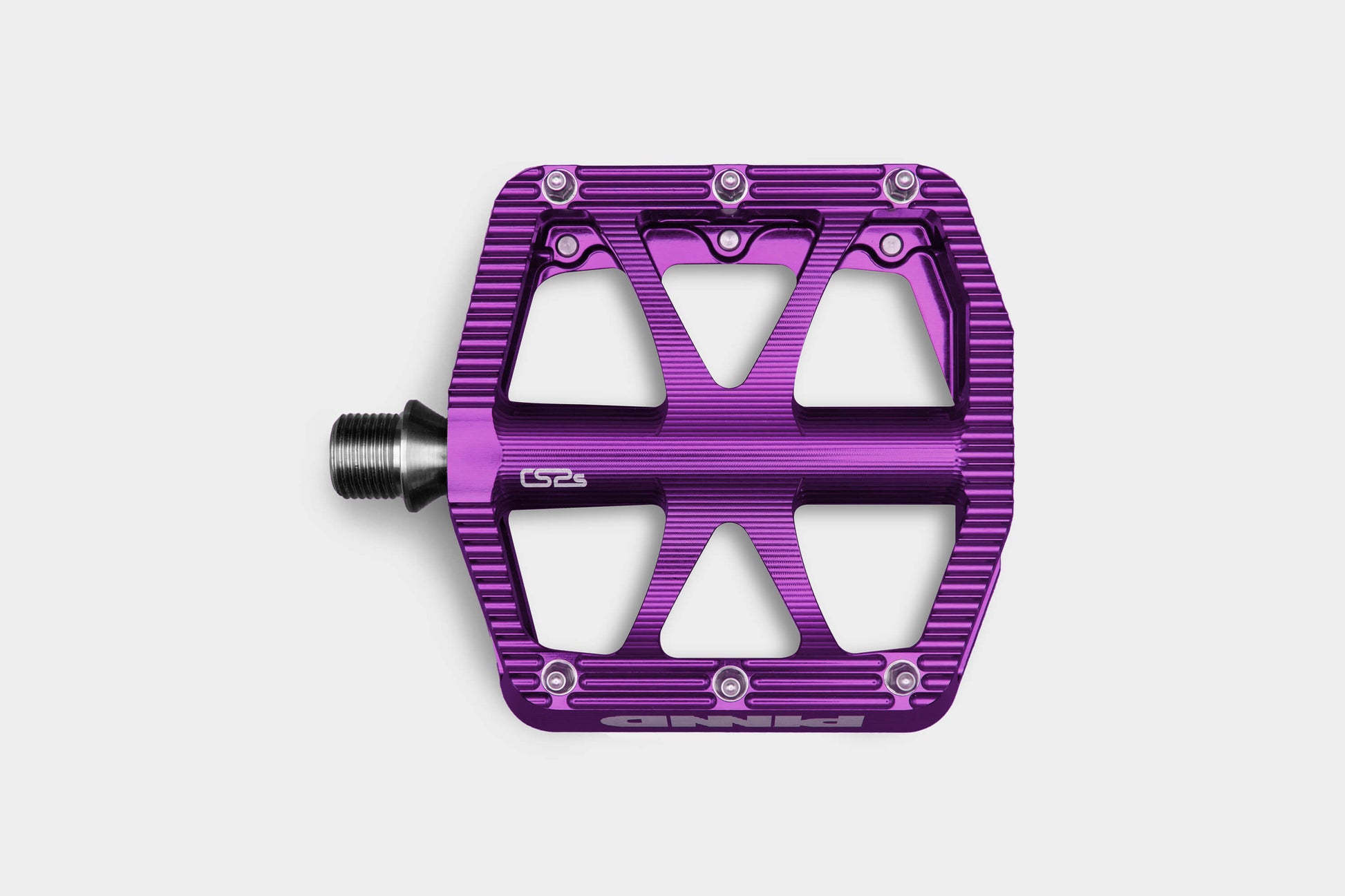

CS2s Pedals
CS2s Pedals
Designed and precision engineered in Scotland to withstand the toughest trails and conditions for those looking for a smaller footprint than our CS2 standard.
Featuring oil sealed internals, our bearings run on stainless steel spindles inside anodised 7075 T6 platforms.
- 1 x Needle Bearing and 2 x Cartridge Bearings per pedal
- Weight is 378g per pair with stock 303 Stainless Steel pins
- 6 pins per side for personal customisation
- 5 year warranty (doesn't cover wear and tear)
Share
The CS2 Small pedal is designed for downhill, enduro and trail mountain bike riding. We decided to create a smaller version of our CS2 for those with smaller feet. They are identical in material use to the CS2 - the 7075 T6 aluminium body has been CNC machined on our 5-axis tooling allowing us to fully optimise the pedal for a high traction connection between pedal and shoe.
Internally the pedal features oil sealed bearings to give exceptional all weather performance and long service intervals. This is the difference with PINND - our design incorporates an oil seal which keeps oil in, and water and dirt out. With our use of a needle bearing instead of plastic bush, the CS2 Small won't exhibit the axial play common to most designs. When this play develops the seal becomes compromised and unable to seal resulting in water and dirt ingress and lubrication egress - our solution is 2 fold. Quality oil seal and quality needle bearing.
Fully serviceable -instructions here
Specifications
Pins 12 Per Pedal. Ships with 303 Stainless Steel as standard.
Body Material 7075 T6 Anodised Aluminium
Spindle 17-4PH Stainless Steel
Inner Bearing HK1015 Needle Bearing
Outer Bearing 2 x Cartridge Bearings
Max Rider Weight No limit
Overall Size 92 x 90mm wide (See tech drawing)
Footprint 86.36mm x 90mm wide. Optimised for riders wearing shoes size UK6, EU39 and US7
Height 19.50mm excluding pins, 27.50mm with lower profile(friendly) pins, 29.50mm with higher profile(aggro) pins
Warranty 5 Years Limited Warranty - half price crash replacement
